FRP Cable Tray
FRP Cable Tray

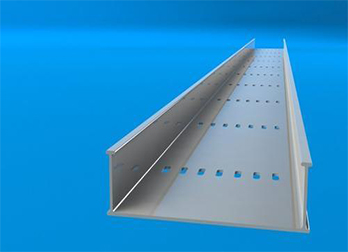

Ladder & Perforated type Cable Tray provides reliable cable support in corrosive application. Both Polyester & Vinyl ester resin systems are available & all components incorporating U.V. Stabilizer & a surfacing veil to resist corrosive atmosphere.
From power plants to fertilizer industries, paper mills to refineries to laboratories, sound electrical design requires an adaptable cable support system that is reliable. Above all durability & resistance to corrosion lead to lower costs during the life of installation.
Features
- Corrosion resistance
- Strength & durability
- Fire Redundant
- Light Weight
- U.V. Stabilities
- Long life
Applications
- Chemical Plants
- Power Plants
- Effluent Treatment Plants
- Offshore Platforms
- Paper Plants
- Refineries
Fiberglass Cable Tray Specification
Standard Applicable
- IS 6746 -1994 Specs for Unsaturated Polyester Resin system for Low Pressure Fiber Reinforced Plastics.
- NEMA FG 1 1984- 1993 [current issue] Specification for fiberglass Tray system -Loading Characteristics
- IS -6746-Appendix - K/UL 94 Flame Retardant [law flammability/v0]
Technical Details
- Side Member FRP Pultruded 'C' Section.
- Rung Sq. Hollow tube 25mm x25mm
Accessories / Fittings
All fitting are pre fabricated & will be same specification as of straight trays.
Connection / Coupler plate & Splice plates
FRP Stainless steel Splice plates of various Type ie. straight as well as adjustable for angle This plates should be installed between .2&.3 of the length of span of the support Fastner of SS 316 shall be provided of 6mm/ 8mmdiameter
